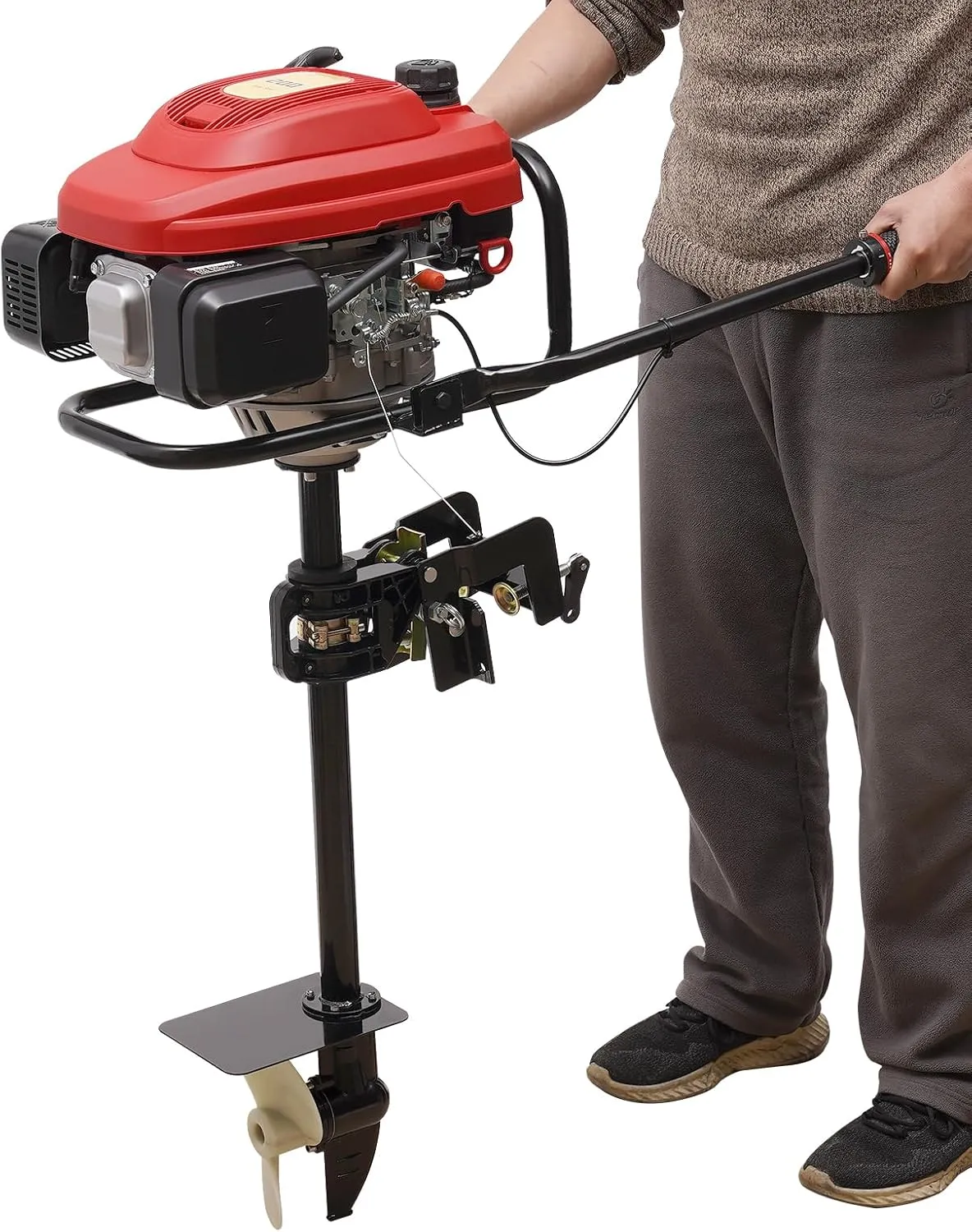

- Durable: This 5hp outboard boat motor is made of high quality aluminum, high hardness, wear-resistant, rust-resistant, good performance, long service life.
- Stable and comfortable driving: The stepless gearbox design can realize continuous gear shifting and no jamming feeling during the gear shifting process, which makes the driving more stable and comfortable. In addition, the 4-stroke 5 hp gas powered engine adopts non-contact electronic ignition and hand-pull starting device, which is convenient to start.
- Flexible steering: The 4 stroke outboard motor has 360-degree steering function and clutch control function, which can easily control the steering of the boat and cope with special water environment.
- Strong power: The 5hp outboard motor maximum power of 3.5 kilowatts, to provide you with strong power, allowing you to drive quickly, saving a lot of time and energy(3600 rpm).
- Good Heat Dissipation: Multiple cooling holes on the shell can quickly dissipate heat and prevent burning after long time use. Meanwhile, the air-cooling system can speed up the heat dissipation and reduce the failure rate.
Application
This 5hp 4 stroke boat motor is suitable for boats from 13.12 to 19.69 ft and can be used in fishing, aquaculture, outdoor adventure, water sports, water tourism, water rescue, and other fields.
Specification
Color: Red, Black
Style: Modern
Material: Aluminum
Assembly Required: Yes
Recommended Fuel: 4-Stroke Engine Oil (No. 92 Unleaded Gasoline)
Displacement: 200cc
Gear Ratio: 2:1
Speed: 3600rpm
Number of Cylinders: 1
Power: 3.5kW
Fuel Tank Capacity: 1.3L/ 0.34gal
Endurance: About 2 hours
Ignition System: CDI
Cooling System: Air-cooled
Starting System: Hand-pull
Load Capacity: About 7.5kg/ 16.53 lbs
Suitable Boat Size: 4-6 m/ 13.12-19.69ft
Control Handle Length: 60cm/ 23.62in
Stem Length: 76cm/ 29.92in
Armrest Bracket Width: 36cm/ 14.17in
Overall Product Size (WxH): 41x110cm/ 16.14x43.31in
Gross Weight: 30kg/ 66.14 lbs
Package Size: 116x38x48 cm/ 45.67x14.96x18.9in
Notes
1.Please read the operating manual completely before use. And pay particular attention to the safety instructions included.
2.If the engine has not been used for more than half a month, please drain the fuel in advance.
3.The propeller can withstand both fresh and saltwater but must be cleaned with water immediately after use in salt water.
4.Please note that the fuel tank of the 4-stroke outboard engine can only be filled with No. 92 unleaded gasoline.
5.It is normal that all gasoline engines will make noise.
6.If you need to accelerate, please accelerate slowly, and please do not accelerate rapidly, otherwise it will increase the wear of the clutch.
7.When the machine is not to be used, the oil should be removed before storing. When there is oil in the tank, please store it vertically, and should not store it horizontally.
