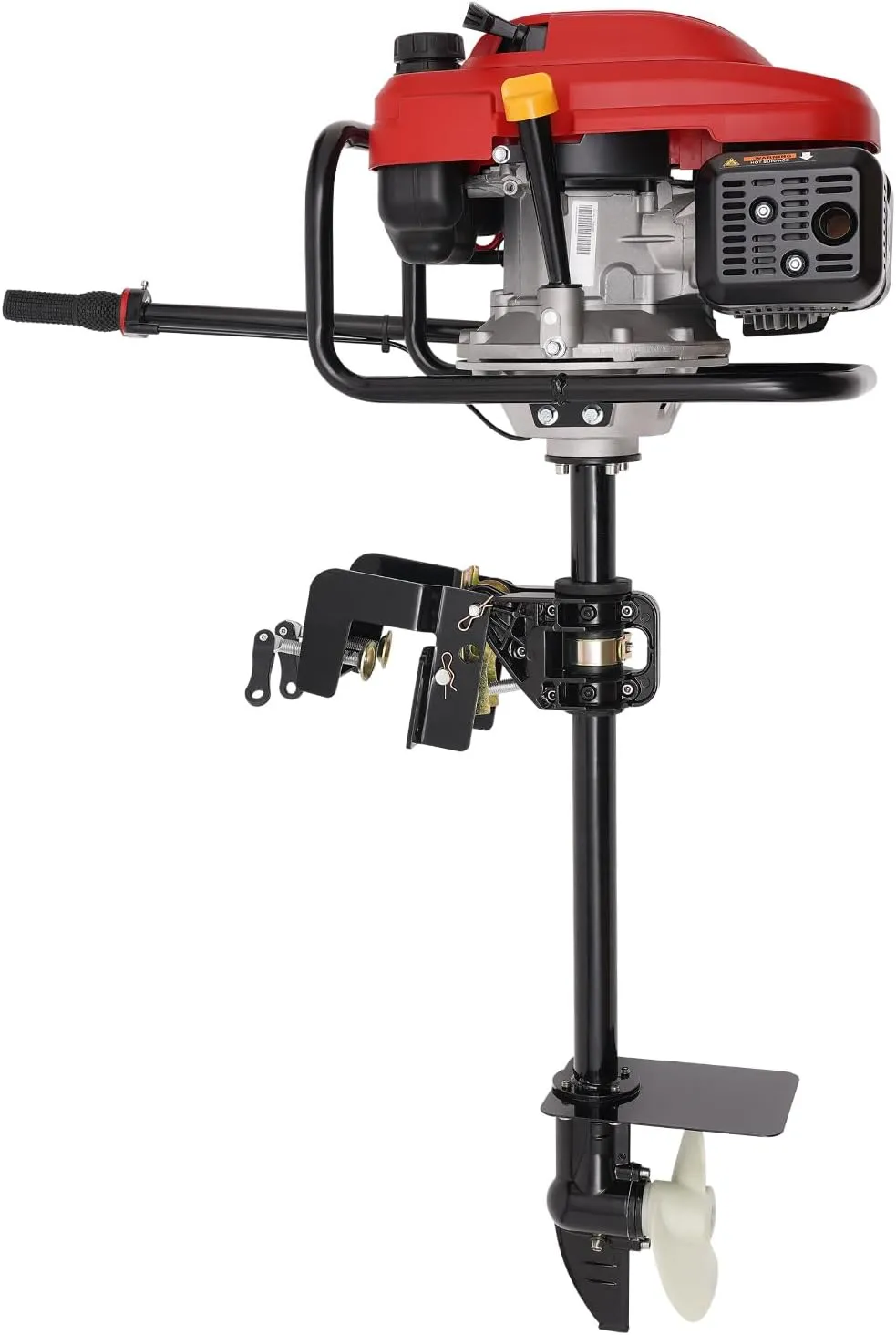

- Build to Last: This outboard motor is made of high-quality aluminum with high hardness, wear resistance properties, and long service life.
- Stable&Comfortable Driving: The continuously variable transmission design allows for continuous gear shifting without the feeling of getting stuck during the shift, making driving smoother and more comfortable.
- Flexible Steering: This outboard motor has a 360-degree steering function and a clutch control function, which makes it easy to control the steering of the boat, so it can handle special water environment.
- Strong Power: The 4-stroke engine (3600 rpm) with a maximum power of 3.5 kW provides you with strong power, allowing you to drive fast and save a lot of time and energy.
- Good Heat Dissipation: Multiple dissipation holes on the housing dissipate heat quickly to prevent outboard motor from burning out after a long time of use. Meanwhile, the air-cooling system can speed up the cooling speed and reduce the failure rate.
Specification
Material: Aluminum
Assembly Required: Yes
Recommended Fuel: 4-Stroke Engine Oil (No. 92 Unleaded Gasoline)
Displacement: 200cc
Gear Ratio: 2:1
Speed: 3600rpm
Number of Cylinders: 1
Power: 3.5kW
Fuel Tank Capacity: 1.3L/ 0.34gal
Endurance: About 2 hours
Ignition System: CDI
Cooling System: Air-cooled
Starting System: Hand-pull
Load Capacity: About 7.5kg/ 16.53 lbs
Suitable Boat Size: 4-6 m/ 13.12-19.69ft
Control Handle Length: 60cm/ 23.62in
Stem Length: 76cm/ 29.92in
Armrest Bracket Width: 36cm/ 14.17in
Overall Product Size (WxH): 41x110cm/ 16.14x43.31in
Gross Weight: 30kg/ 66.14 lbs
Package Size: 116x38x48 cm/ 45.67x14.96x18.9in
Notes
1. Please note that gasoline tends to oxidize and deteriorate when stored. Using deteriorated gasoline will clog the fuel line and cause difficulty in starting. If the engine has not been used for more than half a month, please drain the fuel in advance.
2. The propeller can withstand both fresh and saltwater but must be cleaned with water immediately after use in salt water.
3. Please note that the fuel tank of the 4-stroke outboard engine can only be filled with No. 92 unleaded gasoline.
4. Please prepare enough fuel according to the sailing distance. Please carry a life jacket and hand paddle (not included). Please check the installation of the outboard engine and transom before sailing.
5. It is normal that all gasoline engines will make noise.
6. If you need to accelerate, please accelerate slowly, and please do not accelerate rapidly, otherwise it will increase the wear of the clutch.
7. When the machine is not to be used, the oil should be removed before storing. When there is oil in the tank, please store it vertically, and should not store it horizontally.
